1.Introduction:
| Model | SHR/50C ( 3/2-R) |
| Outlet | 2 - inch |
| Capacity | 39-86.6m3/h |
| TDH | 13 - 46m |
| Rated Motor Power | 30Kw |
| Speed | 1300-2300r/min |
| NPSH | 2-4m
|

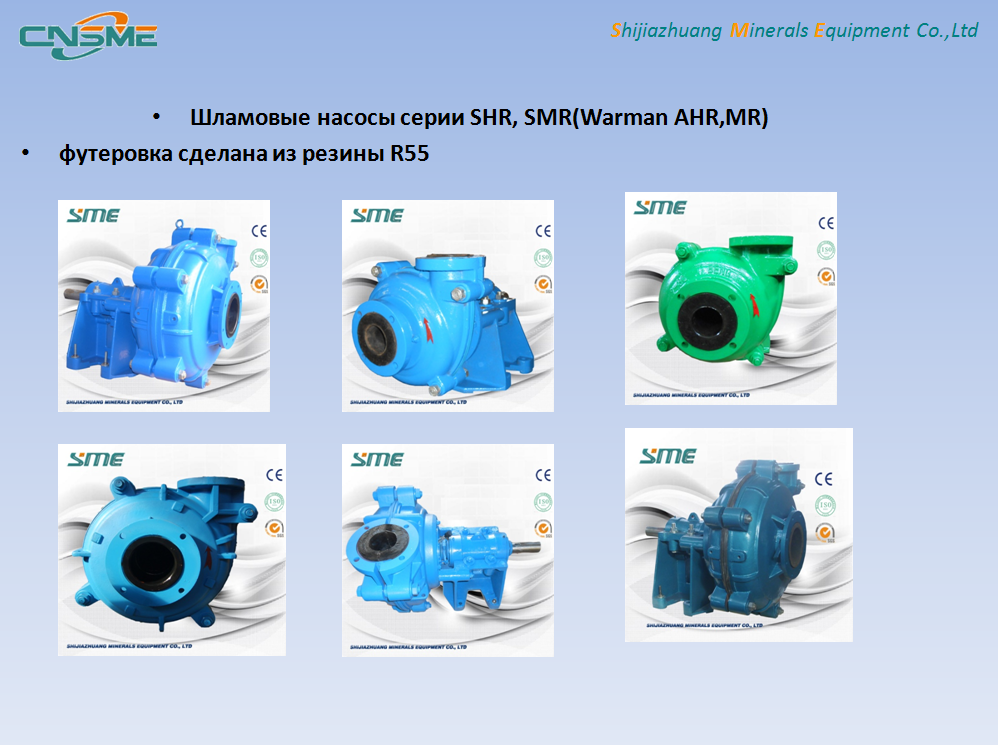

The (SHR/40B) rubber lined slurry pump can be replaced Warman 3/2C-R:
(1) They are designed for transferring the highly abrasive or corrosive slurry.
(2) They are popular in many kinds of mining,metallurgical,and other industry.
(3) The pumps can be driven by electric motor, diesel engine or hydraulic power.
(4) The discharge of pump can be in eight positions to suit installations and applications.
(5) The shaft seals can be adoptable of gland seal or expeller seal, or mechanical seal.
2.Specifications:
| Slurry Pump SH Series Metal Slurry Pump Specifications |
| |
Pump
Model | S×D
(inch) | Allowable
Max. Power (kw) | Material | Clear Water Performance | Impeller | Pricing |
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | No. of
Vanes | Vane Dia.
(mm) | Weight
(kg) |
| Impeller | m3/h | l/s |
| SH/25B(R) | 1.5×1 | 15 | Metal
(A05) | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
| SH/40B(R) | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 |
| SH/50C(R) | 3×2 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 |
| SH/75C(R) | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 |
| SH/75D(R) | 4×3 | 60 | 245 | 363 |
| SH/100D(R) | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 |
| SH/100E(R) | 6×4 | 120 | 365 | 728 |
| SH/150E(R) | 8×6 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 |
| SH/150F(R) | 8×6 | 260 | 510 | 1496 |
| SH/150R(R) | 8×6 | 300 | 510 | 1655 |
| SH/200F(R) | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 |
| SH/200ST(R) | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 |
| SH/250F(R) | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 |
| SH/250ST(R) | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 |
| SH/300ST(R) | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 |
| SH/350TU(R) | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 | 10000 |
3.Typical Applications:
This Series of Pumps are used conveying abrasive or corrosive slurry, especially clinker of power plants in
electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors,etc.
